Femur Shaft Fracture

The femoral shaft runs from
below the hip to where the bone
begins to widen at the knee.

Your thighbone (femur) is the longest and strongest bone in your body. Because the femur is so strong, it usually takes a lot of force to break it. Motor vehicle collisions, for example, are the number one cause of femur fractures.

The long, straight part of the femur is called the femoral shaft. When there is a break anywhere along this length of bone, it is called a femoral shaft fracture. This type of broken leg almost always requires surgery to heal.

What are the different types of femur shaft fractures?

Femur fractures vary greatly, depending on what cause it to break. The pieces of bone may line up correctly (stable fracture) or be out of alignment (displaced fracture). The skin around the fracture may be intact (closed fracture) or the bone may puncture the skin (open fracture).

Doctors describe fractures to each other using classification systems. Femur fractures are classified depending on:

• The location of the fracture (the femoral shaft is divided into thirds: distal, middle, proximal)
• The pattern of the fracture (for example, the bone can break in different directions, such as crosswise, lengthwise, or in the middle)
• Whether the skin and muscle over the bone is torn by the injury

The most common types of femoral shaft fractures include:

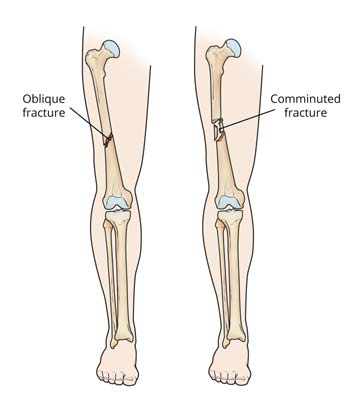

(Left) An oblique fracture has an angled line across the shaft. (Right) A comminuted fracture is broken into three or more pieces.

Transverse fracture. In this type of fracture, the break is a straight horizontal line going across the femoral shaft.

Oblique fracture. This type of fracture has an angled line across the shaft.

Spiral fracture. The fracture line encircles the shaft like the stripes on a candy cane. A twisting force to the thigh causes this type of fracture.

Comminuted fracture. In this type of fracture, the bone has broken into three or more pieces. In most cases, the number of bone fragments corresponds with the amount of force needed to break the bone.

Open fracture. If a bone breaks in such a way that bone fragments stick out through the skin or a wound penetrates down to the broken bone, the fracture is called an open or compound fracture. Open fractures often involve much more damage to the surrounding muscles, tendons, and ligaments. They have a higher risk for complications—especially infections—and take a longer time to heal.

What causes a femur shaft fracture?

Femoral shaft fractures in young people are frequently due to some type of high-energy collision. The most common cause of femoral shaft fracture is a motor vehicle or motorcycle crash. Being hit by a car while walking is another common cause, as are falls from heights and gunshot wounds.

A lower-force incident, such as a fall from standing, may cause a femoral shaft fracture in an older person who has weaker bones.

The most common cause of femur fractures in infants under one year old is child abuse. Child abuse is also a leading cause of thighbone fracture in children between the ages of 1 and 4 years, but the incidence is much less in this age group.

What are the symptoms of femur shaft fracture?

A femoral shaft fracture usually causes immediate, severe pain. You will not be able to put weight on the injured leg, and it may look deformed—shorter than the other leg and no longer straight.

How is a femur shaft fracture diagnosed?

It is important that your doctor know the specifics of how you hurt your leg. For example, if you were in a car accident, it would help your doctor to know how fast you were going, whether you were the driver or a passenger, whether you were wearing your seat belt, and if the airbags went off. This information will help your doctor determine how you were hurt and whether you may be hurt somewhere else.

It is also important for your doctor to know if you have any other health conditions, such as high blood pressure, diabetes, asthma, or allergies. Your doctor will also ask you if you use tobacco products or are taking any medications.

After discussing your injury and medical history, your doctor will do a careful examination. He or she will assess your overall condition, and then focus on your leg.

Your doctor will look for:

•  An obvious deformity of the thigh/leg (an unusual angle, twisting, or shortening of the leg)
• Breaks in the skin
• Bruises
• Bony pieces that may be pushing on the skin

Your doctor will feel along your thigh, leg, and foot looking for abnormalities and checking the tightness of the skin and muscles around your thigh. He or she will also feel for pulses. If you are awake, your doctor will test for sensation and movement in your leg and foot.

X-rays.

This x-ray image shows a transverse fracture of the femur. The break is a straight horizontal line across the shaft

The most common way to evaluate a fracture is with x-rays, which provide clear images of bone. X-rays can show whether a bone is intact or broken. They can also show the type of fracture and where it is located within the femur.

Computerized tomography (CT) scans. If your doctor still needs more information after reviewing your x-rays, he or she may order a CT scan. A CT scan can provide your doctor with valuable information about the severity of the fracture. For example, sometimes the fracture lines can be very thin and hard to see on an x-ray. A CT scan can help your doctor see the lines more clearly.

How is a femur shaft fracture treated?

Most femoral shaft fractures require surgery to heal. It is unusual for femoral shaft fractures to be treated without surgery. Very young children are sometimes treated with a cast.

Most femur fractures are fixed within 24 to 48 hours. Sometimes it will be delayed until other life-threatening injuries or unstable medical conditions are stabilized. To reduce the risk of infection, open fractures are treated with antibiotics as soon as you arrive at the hospital. The open wound, tissues, and bone will be cleaned during surgery.

For the time between initial emergency care and your surgery, your doctor may place your leg either in a long-leg splint or in traction. This is to keep your broken bones as aligned as possible and to maintain the length of your leg.

Skeletal traction is a pulley system of weights and counterweights that holds the broken pieces of bone together. It keeps your leg straight and often helps to relieve pain.

External fixation

External fixation is often used to hold the bones together temporarily when the skin and muscles have been injured.

In this type of operation, metal pins or screws are placed into the bone above and below the fracture site. The pins and screws are attached to a bar outside the skin. This device is a stabilizing frame that holds the bones in the proper position.

External fixation is usually a temporary treatment for femur fractures. Because they are easily applied, external fixators are often put on when a patient has multiple injuries and is not yet ready for a longer surgery to fix the fracture. An external fixator provides good, temporary stability until the patient is healthy enough for the final surgery. In some cases, an external fixator is left on until the femur is fully healed, but this is not common.

Intramedullary nailing

Currently, the method most surgeons use for treating femoral shaft fractures is intramedullary nailing. During this procedure, a specially designed metal rod is inserted into the canal of the femur. The rod passes across the fracture to keep it in position.

An intramedullary nail can be inserted into the canal either at the hip or the knee. Screws are placed above and below the fracture to hold the leg in correct alignment while the bone heals.

(Left) This x-ray, taken from the side, shows a transverse fracture of the femur. (Right) In this front view x-ray, the fracture has been treated with intramedullary nailing

Intramedullary nails are usually made of titanium. They come in various lengths and diameters to fit most femur bones.

Plates and screws

During this surgery, the bone fragments are first repositioned into their normal alignment. They are held together with screws and metal plates attached to the outer surface of the bone.

Plates and screws are often used when intramedullary nailing may not be possible, such as for fractures that extend into either the hip or knee joints.

How is a child’s femur fracture treated without surgery?

In some thighbone fractures, the doctor may be able to move the broken bones back into place without surgery. In a baby under 6 months old, a brace (called a Pavlik Harness) may be able to hold the broken bone still enough for successful healing.

Spica casting

A thighbone fracture before and immediately after treatment with a spica cast. The femur will remodel over time so that it appears normal.

In children between 7 months and 5 years old, a spica cast is often applied to keep the fractured pieces in correct position until the bone is healed. There are different types of spica casts, but, in general, a spica cast begins at the chest and extends all the way down the fractured leg. The cast may also extend down the uninjured leg, or stop at the knee or hip. Your doctor will decide which type of spica cast is most effective for treating your child's fracture.

Your doctor will sedate your child for the closed reduction, and apply a spica cast immediately (or within 24 hours of hospitalization) to keep the fractured pieces in correct position until healing occurs.

When a bone breaks and is displaced, the pieces often overlap and shorten the normal length of the bone. Because children's bones grow quickly, your doctor may not need to manipulate the pieces back into perfect alignment. While in the cast, the bones will grow and heal back into a more normal shape. In general, for the best results, the broken pieces should not overlap more than 2 cm when in the cast. The growth of the femur may be temporarily increased by the trauma. The mild shortening from the overlap will resolve.

Traction

If the shortening of the bones is too much (more than 3 cm) or if the bone is too crooked in the cast, it may be helpful to put the leg in a weight and counterweight system (traction) to make sure the bones are properly realigned.

What is recovery from a femur shaft fracture like?

Most femoral shaft fractures take 3 to 6 months to completely heal. Some take even longer, especially if the fracture was open or broken into several pieces or if the patient uses tobacco products.

How long will it take a child to recover from a fractured femur?

Generally, children who fracture their femur will heal well, regain normal function, and have legs that are equal in length. The intramedullary nails may need to be removed following healing if they cause irritation of the skin and tissues underneath.

Sometimes, children will require further treatment, either early on or in subsequent years, if their legs are different lengths, unacceptable angulation of the healed bone, abnormal rotation of the healed bone, infection, or (rarely) if a thighbone fracture persists (nonunion).

These problems can nearly always be resolved with further treatment.

Pain Management

Pain after an injury or surgery is a natural part of the healing process. Your doctor and nurses will work to reduce your pain, which can help you recover faster. Medications are often prescribed for short-term pain relief after surgery or an injury. Many types of medications are available to help manage pain. These include acetaminophen, nonsteroidal anti-inflammatory drugs (NSAIDs), gabapentinoids, muscle relaxants, opioids, and topical pain medications. Your doctor may use a combination of these medications to help control pain, as well as minimize the need for opioids. Some pain medications may have side effects that can impact your ability to drive and do other activities. Your doctor will talk to you about the side effects of your pain medications.

Weight Bearing

Many doctors encourage leg motion early on in the recovery period. It is very important to follow your doctor's instructions for putting weight on your injured leg to avoid problems.

In some cases, doctors will allow patients to put as much weight as possible on the leg right after surgery. However, you may not be able to put full weight on your leg until the fracture has started to heal. Be sure to follow your doctor's instructions carefully.

When you begin walking, you will probably need to use crutches or a walker for support.

Physical Therapy

Because you will most likely lose muscle strength in the injured area, exercises during the healing process are important. Physical therapy will help to restore normal muscle strength, joint motion, and flexibility. It can also help you manage your pain after surgery.

A physical therapist will most likely begin teaching you specific exercises while you are still in the hospital. The therapist will also help you learn how to use crutches or a walker.

What are some possible complications of breaking your femur shaft?

Complications from Femoral Shaft Fractures

Femoral shaft fractures can cause further injury and complications.

• The ends of broken bones are often sharp and can cut or tear surrounding blood vessels or nerves, though this is very rare.
• Acute compartment syndrome may develop. This is a painful condition that occurs when pressure within the muscles builds to dangerous levels. This pressure can decrease blood flow, which prevents nourishment and oxygen from reaching nerve and muscle cells. Unless the pressure is relieved quickly, permanent disability may result. This is a surgical emergency. During the procedure, your surgeon makes incisions in your skin and the muscle coverings to relieve the pressure.
• Open fractures expose the bone to the outside environment. Even with good surgical cleaning of the bone and muscle, the bone can become infected. Bone infection is difficult to treat and often requires multiple surgeries and long-term antibiotics.
• Occasionally, the ligaments around the knee can be injured during a femoral shaft fracture. If you have knee pain after surgery, tell your doctor.

Complications from Surgery

In addition to the risks of surgery in general, such as blood loss or problems related to anesthesia, complications of surgery may include:

• Infection
• Injury to nerves and blood vessels
• Blood clots
• Fat embolism (bone marrow enters the blood stream and can travel to the lungs; this can also happen from the fracture itself without surgery)
• Malalignment or the inability to correctly position the broken bone fragments
• Delayed union or nonunion (when the fracture heals slower than usual or not at all)
• Hardware irritation (sometimes the end of the nail or the screw can irritate the overlying muscles and tendons)
